Bone Marrow (Levine et al.)

Article: Data-Driven Phenotypic Dissection of AML Reveals Progenitor-like Cells that Correlate with Prognosis

[1]:

import warnings
# warnings.simplefilter(action='ignore', category=FutureWarning)

%load_ext autoreload
import scprep
import scanpy as sc
import fcsparser
import pandas as pd
import numpy as np
import time
import matplotlib.pyplot as plt

import sklearn.metrics

from tqdm.notebook import tqdm

sc.settings.set_figure_params(dpi=80, facecolor='white')

Data Preparation

[2]:

meta, data = fcsparser.parse("../../levine/Levine_32dim_notransform.fcs", reformat_meta=True)

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\fcsparser\api.py:356: UserWarning: The default channel names (defined by the $PnS parameter in the FCS file) were not unique. To avoid problems in downstream analysis, the channel names have been switched to the alternate channel names defined in the FCS file. To avoid seeing this warning message, explicitly instruct the FCS parser to use the alternate channel names by specifying the channel_naming parameter.
  warnings.warn(msg)

[3]:

cell_type_df = pd.read_table("../../levine/population_names_Levine_32dim.txt")
cell_type_dict = cell_type_df.label.tolist()

[4]:

data

[4]:

	Time	Cell_length	DNA1	DNA2	CD45RA	CD133	CD19	CD22	CD11b	CD4	...	CD117	CD49d	HLA-DR	CD64	CD41	Viability	file_number	event_number	label	individual
0	2693.0000	22.0	201.783295	253.016647	0.817049	-0.147947	-0.033482	0.332183	-0.045922	1.858334	...	0.265375	4.804858	12.734092	-0.026878	-0.009804	3.474168	94.0	307.0	1.0	1.0
1	3736.0000	35.0	191.828598	308.869080	3.801385	-0.191446	-0.083274	0.372388	4.494379	-0.177158	...	0.448901	0.995556	2.558165	0.726602	4.905976	2.956692	94.0	545.0	1.0	1.0
2	7015.0000	32.0	116.111923	200.839218	3.204439	-0.161106	0.369613	-0.214952	-0.009404	-0.043904	...	0.231194	33.025459	8.574364	-0.054804	-0.052067	3.443209	94.0	1726.0	1.0	1.0
3	7099.0000	29.0	176.248505	313.022461	2.237382	-0.138071	-0.088311	-0.220430	4.006598	-0.095335	...	0.332596	8.879428	0.704930	-0.067247	-0.130211	-0.132632	94.0	1766.0	1.0	1.0
4	7700.0000	25.0	133.332779	226.467758	-0.044047	-0.151509	0.402548	2.581769	6.742060	2.906627	...	-0.031117	0.909562	0.993077	0.381205	-0.202496	1.435457	94.0	2031.0	1.0	1.0
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
265622	707951.4375	41.0	2305.191162	3131.641357	10.345075	-0.095875	-0.278241	-0.036303	0.317188	0.729079	...	-0.055526	2.797205	0.620372	-0.212540	-0.139874	1.195905	98.0	102686.0	NaN	2.0
265623	708145.4375	45.0	2217.376953	3198.114258	0.585101	-0.281215	-0.044320	-0.175828	-0.209287	5.648056	...	0.721827	8.194910	0.236164	-0.039998	-0.129067	-0.017502	98.0	102690.0	NaN	2.0
265624	708398.4375	41.0	2455.673340	3157.416260	3.698715	-0.031322	-0.130569	-0.154208	-0.173241	11.841664	...	0.436060	-0.279705	2.614141	0.269550	-0.213073	0.537059	98.0	102701.0	NaN	2.0
265625	708585.4375	39.0	2395.883789	3167.325439	1.463955	-0.056550	-0.244025	0.370252	-0.158964	0.394406	...	-0.239947	0.510660	1231.869141	1.506284	0.969914	3.307683	98.0	102706.0	NaN	2.0
265626	709122.4375	41.0	2450.653320	3113.955078	1.843143	0.644794	-0.034668	0.550337	119.171364	4.389215	...	0.401405	0.189855	98.570404	-0.004392	-0.262749	1.577387	98.0	102720.0	NaN	2.0

265627 rows × 41 columns

[5]:

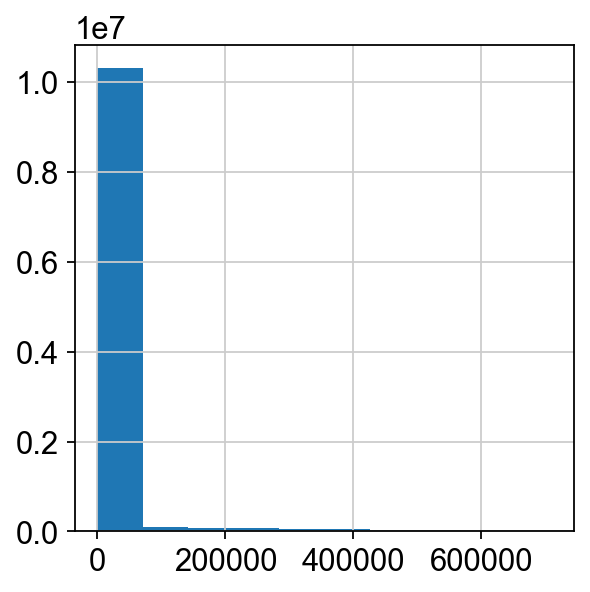

plt.hist(data.values.reshape([-1]))

[5]:

(array([1.0314604e+07, 8.9312000e+04, 7.0295000e+04, 6.9794000e+04,
        6.4115000e+04, 5.5185000e+04, 3.3056000e+04, 2.3468000e+04,
        8.3960000e+03, 1.0390000e+03]),
 array([-2.9138437e-01,  7.0911984e+04,  1.4182425e+05,  2.1273653e+05,
         2.8364881e+05,  3.5456106e+05,  4.2547334e+05,  4.9638562e+05,
         5.6729788e+05,  6.3821019e+05,  7.0912244e+05], dtype=float32),
 <BarContainer object of 10 artists>)

[6]:

np.random.seed(0)

[7]:

data = data[~data.label.isna()]
data.shape

[7]:

(104184, 41)

[8]:

data.label.value_counts()

[8]:

7.0     26366
10.0    21099
8.0     20108
9.0     16520
13.0     6135
2.0      3905
4.0      3295
3.0      2248
11.0     1238
1.0      1207
6.0       916
14.0      513
12.0      330
5.0       304
Name: label, dtype: int64

[9]:

np.mean(data, axis=0)

[9]:

Time            276478.531250
Cell_length         34.430950
DNA1               684.012207
DNA2               992.205688
CD45RA               5.079967
CD133                0.749893
CD19                 5.972546
CD22                 4.606853
CD11b                9.513360
CD4                  2.603396
CD8                  8.381186
CD34                 4.057331
Flt3                 2.719659
CD20                 5.859529
CXCR4                5.838455
CD235ab              4.725650
CD45               727.466614
CD123                5.640072
CD321               23.248325
CD14                 0.419198
CD33                 2.484559
CD47                50.751251
CD11c                9.642146
CD7                 16.734358
CD15                 1.180270
CD16                 1.901266
CD44               163.731247
CD38                39.193321
CD13                 2.337435
CD3                149.481522
CD61                 1.374841
CD117                0.809172
CD49d                5.396836
HLA-DR              50.203678
CD64                 5.999704
CD41                 1.043497
Viability            3.573676
file_number         95.217880
event_number    169115.390625
label                8.116102
individual           1.304471
dtype: float32

[10]:

labels = [cell_type_dict[int(i - 1)] for i in data['label']]

[11]:

data = data[meta['_channels_']['$PnN'][4:36].tolist()]
data[data < 0.] = 0.

[12]:

adata = sc.AnnData(data)

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\anndata\_core\anndata.py:119: ImplicitModificationWarning: Transforming to str index.
  warnings.warn("Transforming to str index.", ImplicitModificationWarning)

[13]:

adata

[13]:

AnnData object with n_obs × n_vars = 104184 × 32

[14]:

adata.obs['label'] = labels

[15]:

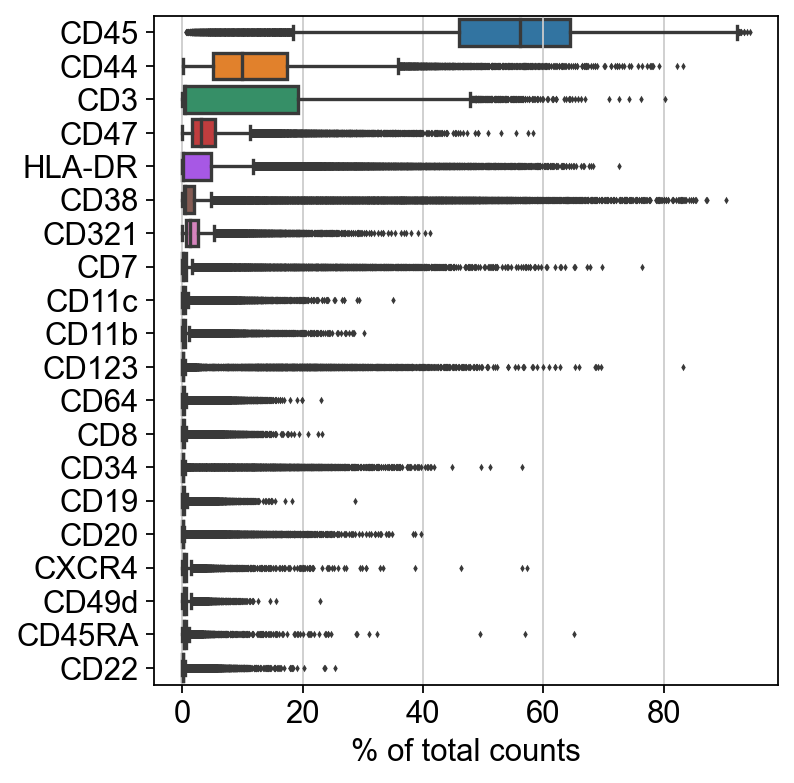

sc.pl.highest_expr_genes(adata, n_top=20, )

[16]:

#sc.pp.filter_cells(adata, min_genes=25)

[17]:

sc.pp.calculate_qc_metrics(adata,  percent_top=None, log1p=False, inplace=True)

[18]:

sc.pp.normalize_total(adata, target_sum=1e4)
sc.pp.log1p(adata)
sc.pp.scale(adata, max_value=10)

PCA

[19]:

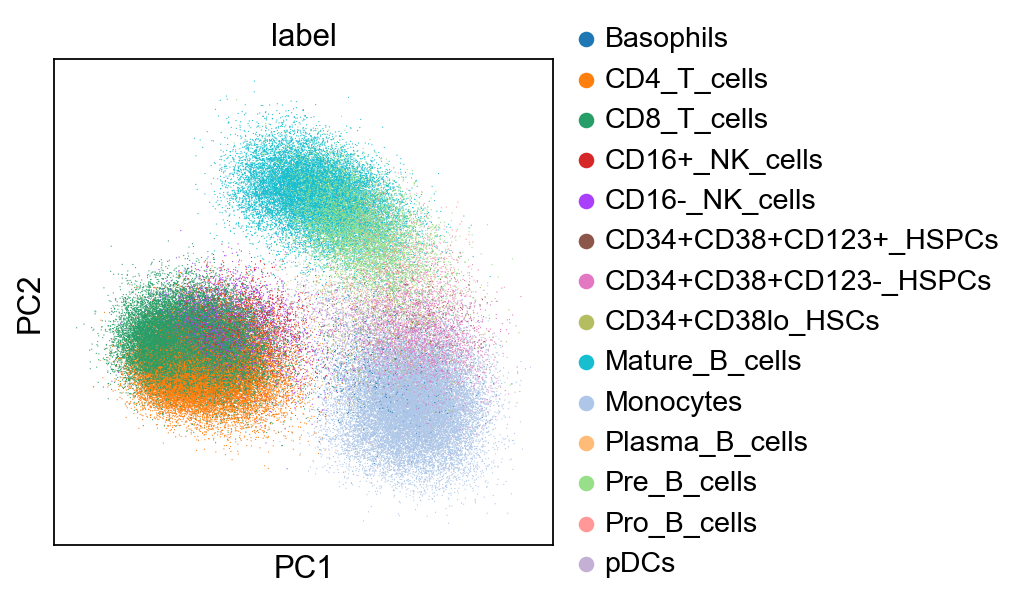

sc.tl.pca(adata, svd_solver='arpack')
sc.pl.pca(adata, color='label')

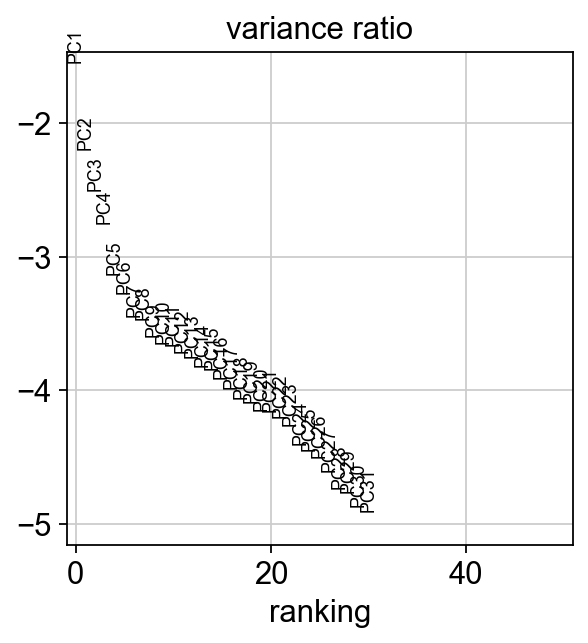

sc.pl.pca_variance_ratio(adata, log=True, n_pcs=50)

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\anndata\_core\anndata.py:1192: FutureWarning: is_categorical is deprecated and will be removed in a future version.  Use is_categorical_dtype instead
  if is_string_dtype(df[key]) and not is_categorical(df[key])
... storing 'label' as categorical

UMAP

[20]:

sc.pp.neighbors(adata, n_pcs=30)
sc.tl.umap(adata)

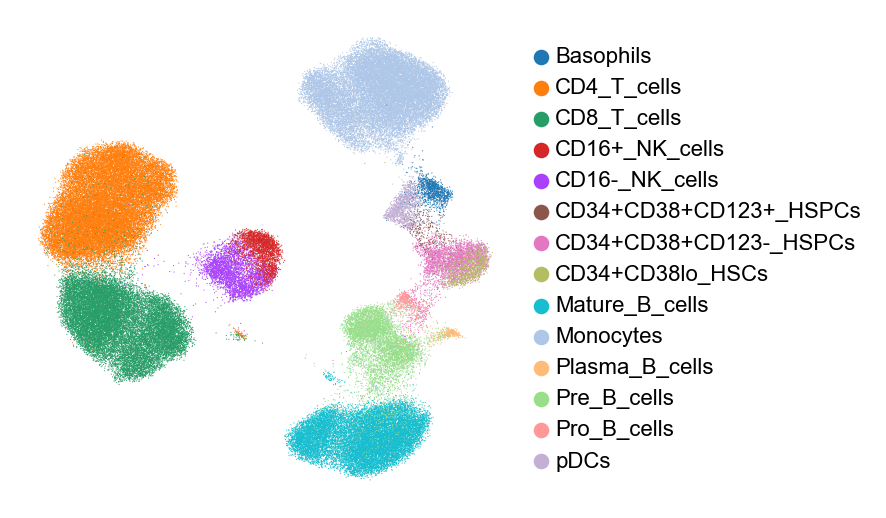

sc.pl.umap(adata, color=['label'], frameon=False, size=1., legend_fontsize=10, title='')

SCMER Marker Selection

[21]:

np.random.seed(0)
subset_adata = adata[np.random.choice(adata.shape[0], 5000, False), :]

import sys
sys.path.insert(0, '..')
import scmer

model = scmer.UmapL1(w=1., lasso=2.4e-2, ridge=0., n_pcs=30, perplexity=100., use_beta_in_Q=True, n_threads=6,
                             max_outer_iter=2)
model.fit(subset_adata.X)

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\anndata\_core\anndata.py:1094: FutureWarning: is_categorical is deprecated and will be removed in a future version.  Use is_categorical_dtype instead
  if not is_categorical(df_full[k]):

Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 0.540678
Done. Elapsed time: 21.53 seconds. Total: 21.53 seconds.
Creating model without batches...
Optimizing using OWLQN (because lasso is nonzero)...
0 loss: 3.320998191833496 Nonzero: 19 Elapsed time: 51.57 seconds. Total: 73.11 seconds.
1 loss: 3.216078281402588 Nonzero: 19 Elapsed time: 24.27 seconds. Total: 97.38 seconds.
final loss: 2.9716053009033203 Nonzero: 19 Elapsed time: 0.83 seconds. Total: 98.21 seconds.

[21]:

<scmer._umap_l1.UmapL1 at 0x1890e33eb08>

[22]:

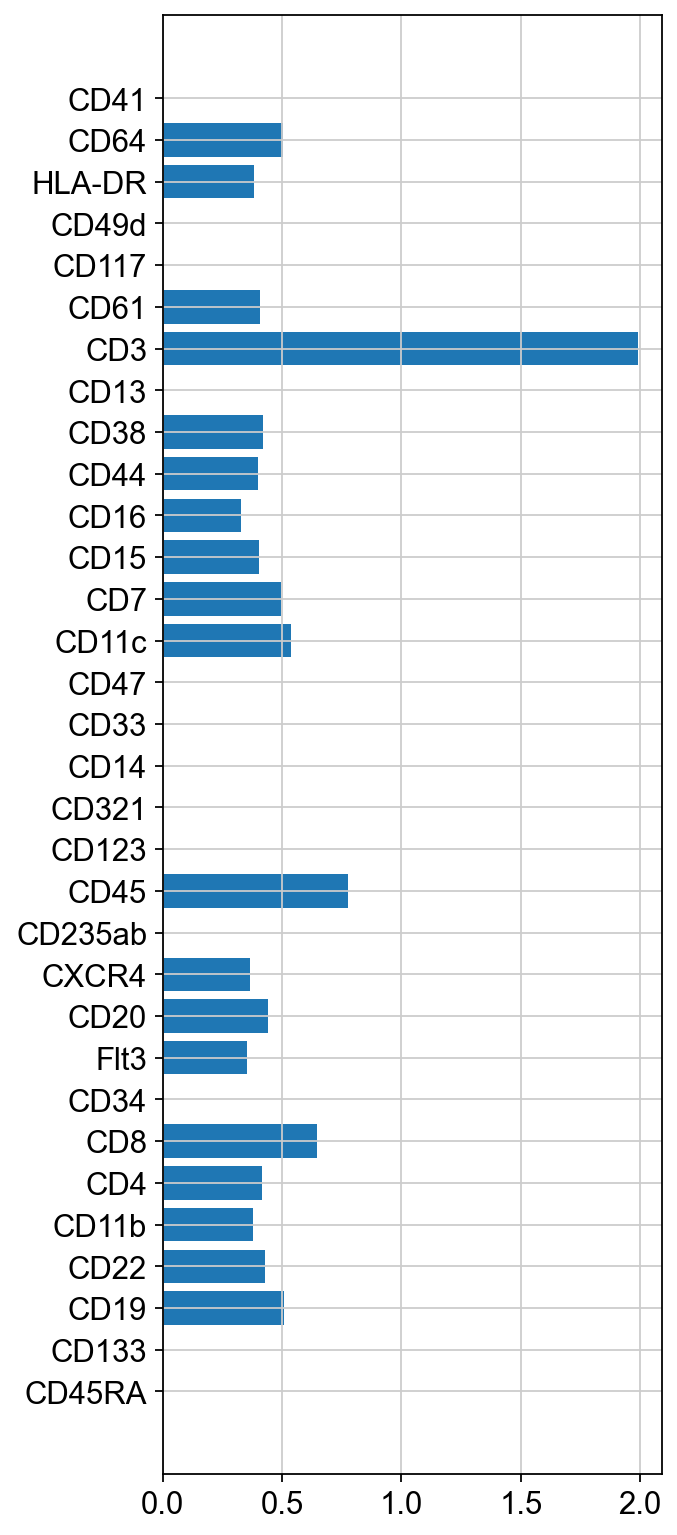

plt.figure(figsize=(4, 12))
plt.barh(adata.var.index, np.abs(model.w))

[22]:

<BarContainer object of 32 artists>

[23]:

selected_genes = subset_adata.var_names[model.w > 0.]

Validation

PCA and UMAP

[24]:

new_adata = adata[:, selected_genes]
sc.tl.pca(new_adata, svd_solver='arpack')

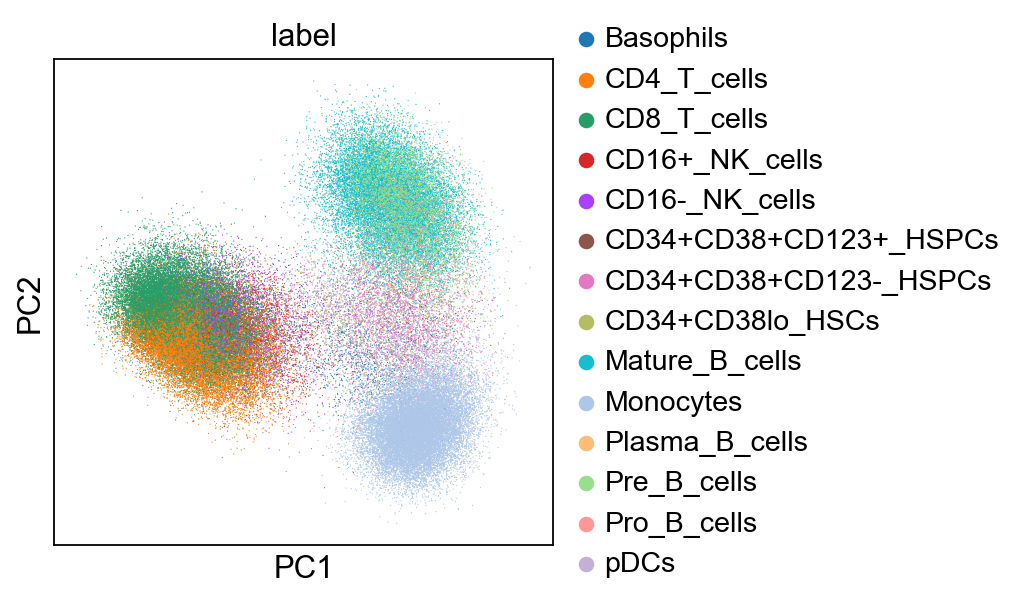

sc.pl.pca(new_adata, color=['label'])

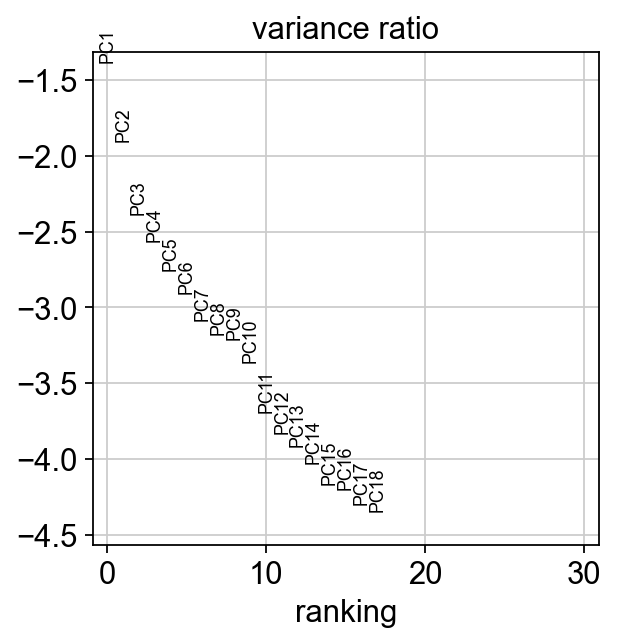

sc.pl.pca_variance_ratio(new_adata, log=True)

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\anndata\_core\anndata.py:1094: FutureWarning: is_categorical is deprecated and will be removed in a future version.  Use is_categorical_dtype instead
  if not is_categorical(df_full[k]):

[25]:

sc.pp.neighbors(new_adata, n_pcs=12)
sc.tl.umap(new_adata)
sc.pl.umap(adata, color=['label'], frameon=False, size=1., legend_fontsize=10, title='')
