198 Pan-Cancer Cell Lines Marker Selection

import scanpy as sc
import os
import pandas as pd
import numpy as np
import pickle as pkl
import matplotlib as mpl
import matplotlib.pyplot as plt
import scipy.stats
from scipy.io import mmread

sc.settings.verbosity = 3

obs = pd.read_table("../../pancancer/Metadata.txt", index_col=0, skiprows=[1])

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\IPython\core\interactiveshell.py:3337: DtypeWarning: Columns (2) have mixed types.Specify dtype option on import or set low_memory=False.
  if (await self.run_code(code, result,  async_=asy)):

#adata = sc.read_text("../../pancancer/GSE157220_CPM_data.txt.gz")
#adata = adata.T

#adata.write_h5ad("../../pancancer/GSE157220_CPM_data.h5ad")

adata = sc.read_h5ad("../../pancancer/GSE157220_CPM_data.h5ad")

adata.obs = obs.loc[adata.obs_names]

sc.settings.set_figure_params(dpi=80, facecolor='white')
sc.pl.highest_expr_genes(adata, n_top=20)

normalizing counts per cell
    finished (0:00:02)

#sc.pp.filter_cells(adata, min_genes=100)
#sc.pp.filter_genes(adata, min_cells=5)

# adata = adata[adata.obs.pct_counts_mt < 25, :]

sc.pp.normalize_total(adata, target_sum=1e4)

normalizing counts per cell
    finished (0:00:00)

sc.pp.log1p(adata)

sc.pp.highly_variable_genes(adata, min_mean=0.0125, max_mean=3, min_disp=0.5)
sc.pl.highly_variable_genes(adata)

extracting highly variable genes
    finished (0:00:12)
--> added
    'highly_variable', boolean vector (adata.var)
    'means', float vector (adata.var)
    'dispersions', float vector (adata.var)
    'dispersions_norm', float vector (adata.var)

adata.var.highly_variable.sum()

2208

adata.raw = adata

adata = adata[:, adata.var.highly_variable]

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\anndata\_core\anndata.py:1094: FutureWarning: is_categorical is deprecated and will be removed in a future version.  Use is_categorical_dtype instead
  if not is_categorical(df_full[k]):

sc.pp.scale(adata, max_value=10)

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\scanpy\preprocessing\_simple.py:806: UserWarning: Revieved a view of an AnnData. Making a copy.
  view_to_actual(adata)

adata.obs.head()

	Cell_line	Pool_ID	Cancer_type	Genes_expressed	Discrete_cluster_minpts5_eps1.8	Discrete_cluster_minpts5_eps1.5	Discrete_cluster_minpts5_eps1.2	CNA_subclone	SkinPig_score	EMTI_score	EMTII_score	EMTIII_score	IFNResp_score	p53Sen_score	EpiSen_score	StressResp_score	ProtMatu_score	ProtDegra_score	G1/S_score	G2/M_score
AAACCTGAGACATAAC-1-18	NCIH2126_LUNG	18	Lung Cancer	4318	NaN	NaN	NaN	NaN	0.166	-0.045	-0.935	-0.935	0.130	0.619	1.869	-0.004	0.805	0.896	0.424	-1.125
AACGTTGTCACCCGAG-1-18	NCIH2126_LUNG	18	Lung Cancer	5200	NaN	NaN	NaN	NaN	-0.213	0.035	-1.027	-1.027	0.066	1.049	1.267	0.252	1.299	1.610	0.624	-0.048
AACTGGTAGACACGAC-1-18	NCIH2126_LUNG	18	Lung Cancer	4004	NaN	NaN	NaN	NaN	-0.101	-0.183	-0.677	-0.677	0.304	0.822	2.401	0.141	0.451	1.225	-0.795	0.064
AACTGGTAGGGCTTGA-1-18	NCIH2126_LUNG	18	Lung Cancer	4295	NaN	NaN	NaN	NaN	-0.014	-0.093	-0.735	-0.735	0.094	0.834	2.282	0.150	0.267	0.892	-0.238	1.118
AACTGGTAGTACTTGC-1-18	NCIH2126_LUNG	18	Lung Cancer	4842	NaN	NaN	NaN	NaN	0.006	-0.055	-0.821	-0.821	0.034	0.960	1.400	-0.012	-0.276	-0.428	0.267	0.791

sc.settings.set_figure_params(dpi=100, facecolor='white')
sc.tl.pca(adata, svd_solver='arpack', n_comps=100)
sc.pl.pca(adata, color=['Cancer_type'], size=5., frameon=False)
sc.pl.pca_variance_ratio(adata, log=True, n_pcs=100)

computing PCA
    on highly variable genes
    with n_comps=100

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\anndata\_core\anndata.py:1094: FutureWarning: is_categorical is deprecated and will be removed in a future version.  Use is_categorical_dtype instead
  if not is_categorical(df_full[k]):

    finished (0:00:09)

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\anndata\_core\anndata.py:1192: FutureWarning: is_categorical is deprecated and will be removed in a future version.  Use is_categorical_dtype instead
  if is_string_dtype(df[key]) and not is_categorical(df[key])
... storing 'Cell_line' as categorical
... storing 'Pool_ID' as categorical
... storing 'Cancer_type' as categorical
... storing 'Discrete_cluster_minpts5_eps1.8' as categorical
... storing 'Discrete_cluster_minpts5_eps1.5' as categorical
... storing 'Discrete_cluster_minpts5_eps1.2' as categorical
... storing 'CNA_subclone' as categorical

sc.pp.neighbors(adata, n_pcs=100)
sc.tl.umap(adata)
sc.settings.set_figure_params(dpi=100, facecolor='white')

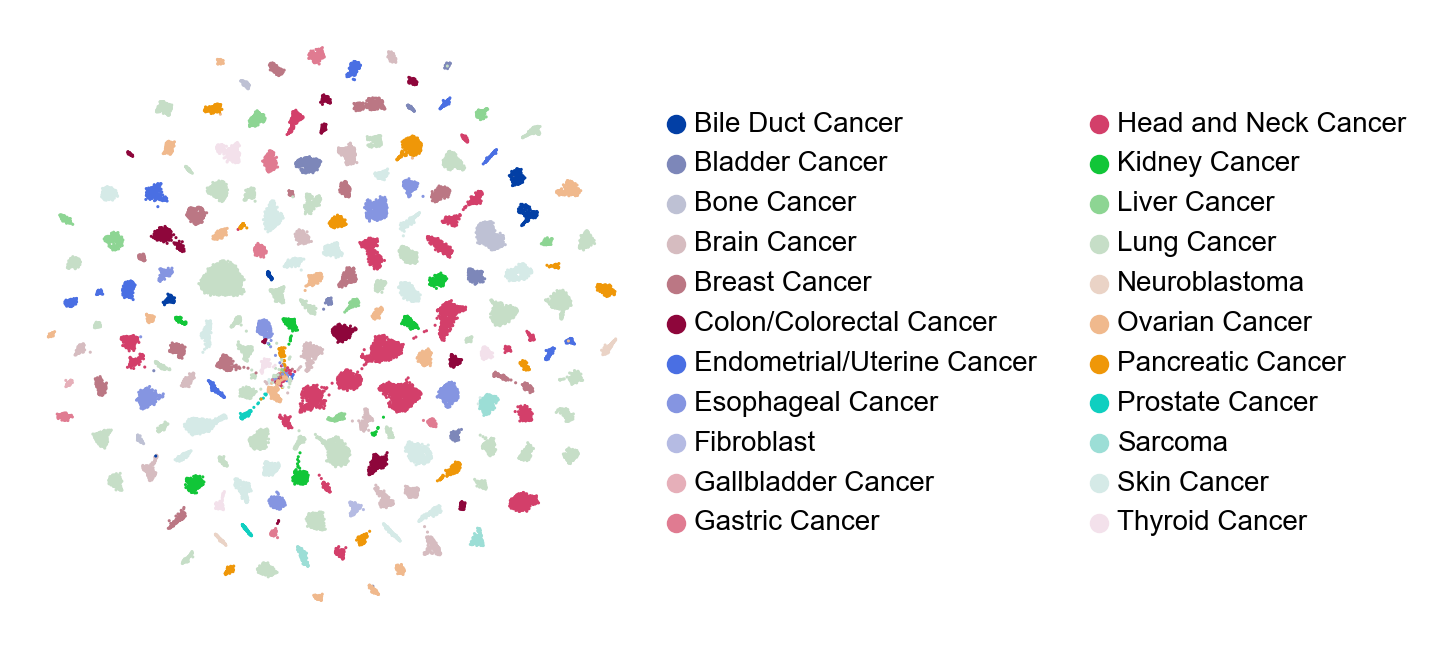

sc.pl.umap(adata, color=['Cancer_type'], frameon=False, size=5., legend_fontsize=10, title="")

computing neighbors
    using 'X_pca' with n_pcs = 100
    finished: added to `.uns['neighbors']`
    `.obsp['distances']`, distances for each pair of neighbors
    `.obsp['connectivities']`, weighted adjacency matrix (0:00:19)
computing UMAP

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\sklearn\manifold\_spectral_embedding.py:236: UserWarning: Graph is not fully connected, spectral embedding may not work as expected.
  warnings.warn("Graph is not fully connected, spectral embedding"

    finished: added
    'X_umap', UMAP coordinates (adata.obsm) (0:00:47)

adata.obs.Cell_line.unique()

['NCIH2126_LUNG', 'SW579_THYROID', 'C32_SKIN', 'NCIH446_LUNG', 'HEC251_ENDOMETRIUM', ..., 'SCC9_UPPER_AERODIGESTIVE_TRACT', 'JHU011_UPPER_AERODIGESTIVE_TRACT', '93VU_UPPER_AERODIGESTIVE_TRACT', 'SCC90_UPPER_AERODIGESTIVE_TRACT', 'JHU006_UPPER_AERODIGESTIVE_TRACT']
Length: 198
Categories (198, object): ['NCIH2126_LUNG', 'SW579_THYROID', 'C32_SKIN', 'NCIH446_LUNG', ..., 'JHU011_UPPER_AERODIGESTIVE_TRACT', '93VU_UPPER_AERODIGESTIVE_TRACT', 'SCC90_UPPER_AERODIGESTIVE_TRACT', 'JHU006_UPPER_AERODIGESTIVE_TRACT']

sc.settings.set_figure_params(dpi=300, facecolor='white')
sc.pl.umap(adata, color=['Cell_line'], frameon=False, legend_loc="on data", size=5., legend_fontsize=2., title="", palette=sc.pl.palettes.default_20)

WARNING: Length of palette colors is smaller than the number of categories (palette length: 20, categories length: 198. Some categories will have the same color.

SCMER Feature Selection

import sys
sys.path.insert(0,'..')
import scmer
model = scmer.UmapL1(w=1., lasso=2e-4, ridge=2e-4, n_pcs=50, perplexity=100., use_beta_in_Q=True, n_threads=6, max_outer_iter=2)
model.fit(adata.X, batches=adata.obs['Cancer_type'].values)

Batch Bile Duct Cancer with 739 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.378048
Done. Elapsed time: 2.52 seconds. Total: 2.52 seconds.
Batch Bladder Cancer with 1291 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.198487
Done. Elapsed time: 3.19 seconds. Total: 5.71 seconds.
Batch Bone Cancer with 1030 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.069480
Done. Elapsed time: 2.78 seconds. Total: 8.49 seconds.
Batch Brain Cancer with 2967 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.197244
Done. Elapsed time: 8.79 seconds. Total: 17.28 seconds.
Batch Breast Cancer with 3285 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.118649
Done. Elapsed time: 9.58 seconds. Total: 26.86 seconds.
Batch Colon/Colorectal Cancer with 2104 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.228417
Done. Elapsed time: 5.02 seconds. Total: 31.88 seconds.
Batch Endometrial/Uterine Cancer with 2057 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.109343
Done. Elapsed time: 4.91 seconds. Total: 36.79 seconds.
Batch Esophageal Cancer with 2544 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.095491
Done. Elapsed time: 6.43 seconds. Total: 43.21 seconds.
Batch Fibroblast with 215 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.633770
Done. Elapsed time: 1.75 seconds. Total: 44.96 seconds.
Batch Gallbladder Cancer with 94 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.644982
Done. Elapsed time: 1.71 seconds. Total: 46.67 seconds.
Batch Gastric Cancer with 1270 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.206267
Done. Elapsed time: 2.95 seconds. Total: 49.62 seconds.
Batch Head and Neck Cancer with 7102 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.041096
Done. Elapsed time: 37.56 seconds. Total: 87.18 seconds.
Batch Kidney Cancer with 1561 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.204537
Done. Elapsed time: 3.46 seconds. Total: 90.64 seconds.
Batch Liver Cancer with 1550 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.269934
Done. Elapsed time: 3.62 seconds. Total: 94.26 seconds.
Batch Lung Cancer with 12842 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 0.886191
Done. Elapsed time: 116.71 seconds. Total: 210.97 seconds.
Batch Neuroblastoma with 355 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.399799
Done. Elapsed time: 1.83 seconds. Total: 212.80 seconds.
Batch Ovarian Cancer with 2495 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.187534
Done. Elapsed time: 6.15 seconds. Total: 218.95 seconds.
Batch Pancreatic Cancer with 2368 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.146014
Done. Elapsed time: 5.84 seconds. Total: 224.79 seconds.
Batch Prostate Cancer with 298 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.508120
Done. Elapsed time: 1.84 seconds. Total: 226.63 seconds.
Batch Sarcoma with 1027 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.249106
Done. Elapsed time: 2.69 seconds. Total: 229.32 seconds.
Batch Skin Cancer with 5351 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.135544
Done. Elapsed time: 22.14 seconds. Total: 251.46 seconds.
Batch Thyroid Cancer with 968 instances.
Calculating distance matrix and scaling factors...
Computing pairwise distances...
Using 6 threads...
Mean value of sigma: 1.312984
Done. Elapsed time: 2.46 seconds. Total: 253.91 seconds.
Creating model without batches...
Optimizing using OWLQN (because lasso is nonzero)...
0 loss (before this step): 3.1993868350982666 Nonzero (after): 251 Elapsed time: 833.58 seconds. Total: 1087.50 seconds.
1 loss (before this step): 2.42031192779541 Nonzero (after): 247 Elapsed time: 963.12 seconds. Total: 2050.61 seconds.
Final loss: 2.36572003364563 Nonzero: 247 Elapsed time: 13.43 seconds. Total: 2064.05 seconds.

<scmer._umap_l1.UmapL1 at 0x2151eb28208>

Validation

rhp_df = pd.read_excel('../../pancancer/41588_2020_726_MOESM3_ESM.xlsx', sheet_name='Table S4', skiprows=3)
rhp_nmf = {rhp_df.columns[i]: rhp_df[rhp_df.columns[i]].dropna().tolist() for i in range(12)}

rhp_df = pd.read_excel('../../pancancer/41588_2020_726_MOESM3_ESM.xlsx', sheet_name='Table S7', skiprows=3)
rhp_vivo = {rhp_df.columns[i]: rhp_df[rhp_df.columns[i]].dropna().tolist() for i in range(21)}

from IPython.display import Markdown, display
def printmd(string):
    display(Markdown(string))

established_markers = rhp_nmf
selected_markers = adata.var_names[model.w > 0]
all_markers = adata.var_names.tolist()
for i in established_markers:
    temp = " ".join((i, str(len(set(established_markers[i]).intersection(set(selected_markers)))),
                     '/', str(len(set(established_markers[i]).intersection(set(all_markers)))),
                     "(", str(len(established_markers[i])), "): "))
    printmd(temp + '_' + '_, _'.join(set(established_markers[i]).intersection(set(selected_markers))) + '_')

Cell Cycle - G1/S 2 / 12 ( 46 ): HIST1H1C, HMGB2

Cell Cycle - G2/M 7 / 30 ( 62 ): CENPF, TOP2A, AURKA, CKS2, UBE2S, MKI67, HMGB2

Skin Pigmentation 4 / 37 ( 47 ): CAPN3, APOE, MLANA, DCT

EMT I 23 / 63 ( 79 ): CAV1, CXCL1, LIMCH1, CCND1, FN1, C12orf75, DKK1, PEG10, SFRP1, KRT7, S100A16, THBS1, ACTG2, S100A4, MYL9, FOSL1, DCBLD2, KRT81, PRSS23, PMEPA1, TGFBI, TPM1, TGM2

EMT II 18 / 24 ( 28 ): VIM, AXL, TAGLN, FN1, IL32, CST6, INHBA, FST, PMEPA1, THBS1, SERPINE1, TPM1, AKAP12, IGFBP7, MYL9, IGFBP3, LAMC2, PRSS23

IFN Response 5 / 39 ( 49 ): IFIT3, ISG15, HLA-B, IL7R, OASL

EMT III 15 / 43 ( 49 ): NEAT1, SLPI, FN1, IL32, G0S2, INHBA, CST6, LAMB3, S100A14, SERPINE1, WFDC2, DMKN, LCN2, LAMC2, KLK10

p53-Dependent Senescence 6 / 13 ( 19 ): S100P, ISG15, KRT19, NEAT1, SLPI, IFI27

Epithelial Senescence 11 / 37 ( 38 ): S100P, NEAT1, SLPI, S100A14, CXCL1, LY6D, ADIRF, AGR2, WFDC2, KRT13, LCN2

Stress Response 0 / 29 ( 36 ): __

Protein Maturation 1 / 13 ( 34 ): LAMB3

Proteasomal Degradation 2 / 8 ( 46 ): PRDX1, EIF4A1

established_markers = rhp_vivo
selected_markers = adata.var_names[model.w > 0]
all_markers = adata.var_names.tolist()
for i in established_markers:
    temp = " ".join((i, str(len(set(established_markers[i]).intersection(set(selected_markers)))),
                     '/', str(len(set(established_markers[i]).intersection(set(all_markers)))),
                     "(", str(len(established_markers[i])), "): "))
    printmd(temp + '_' + '_, _'.join(set(established_markers[i]).intersection(set(selected_markers))) + '_')

GBM.MES2_orig 4 / 32 ( 50 ): SLC2A3, IGFBP3, VIM, AKAP12

GBM.MES1_orig 14 / 35 ( 50 ): S100A11, VIM, IFITM3, MGST1, FN1, S100A16, APOE, SERPINE1, S100A10, SPP1, IGFBP7, MT1E, MGP, TAGLN2

GBM.AC_orig 2 / 18 ( 39 ): S100A16, RAMP1

GBM.OPC_orig 2 / 18 ( 50 ): FABP5, THY1

GBM.NPC1_orig 2 / 19 ( 50 ): SOX11, BEX1

GBM.NPC2_orig 2 / 26 ( 50 ): SOX11, UCHL1

HNSCC.PEMT_orig 20 / 62 ( 100 ): CAV1, TAGLN, MMP1, INHBA, IGFBP3, LAMC2, OCIAD2, SERPINE1, ARPC1B, IL32, MMP2, TPM4, LAMB3, COL1A1, THBS1, IGFBP7, PRSS23, VIM, TGFBI, TPM1

HNSCC.Epidif.1_orig 10 / 62 ( 100 ): S100P, SLPI, CEACAM6, ALDH3B2, LY6D, HIST1H1C, DMKN, PDZK1IP1, LCN2, KLK10

HNSCC.Epidif.2_orig 6 / 34 ( 100 ): AKR1B10, S100A14, FABP5, S100A16, LY6D, MAL2

HNSCC.Stress_orig 4 / 63 ( 100 ): ID1, CD74, LAMB3, FOSL1

HNSCC.Hypoxia_orig 6 / 47 ( 100 ): IGFBP2, SERPINE1, GJB6, HIST1H1C, IGFBP3, ENO1

melanoma.MITF_orig 4 / 43 ( 100 ): CAPN3, ARPC1B, APOE, MLANA

melanoma.AXL_orig 11 / 53 ( 100 ): AXL, FN1, S100A16, SERPINE1, S100A10, SH3BGRL3, S100A4, FOSL1, IGFBP3, LCN2, SLC16A3

melanoma.Inflammatory_orig 8 / 68 ( 229 ): CKS2, SLC2A3, TM4SF1, AKR1B1, PAGE5, SERPINE1, SPP1, SLC16A3

pemt.metaprogram 14 / 39 ( 45 ): VIM, TAGLN, MMP1, KRT8, INHBA, IL32, MMP2, LAMB3, THBS1, SERPINE1, TGFBI, TPM1, IGFBP7, LAMC2

HNSCC.episen_curr 16 / 61 ( 85 ): S100P, AKR1B10, ISG15, SLPI, CEACAM6, FABP5, CST6, IGFL2, ALDH3B2, LY6D, CALML5, DMKN, KRT23, PDZK1IP1, LCN2, KLK10

hypoxia_curr 2 / 23 ( 40 ): IGFBP3, SLC2A3

immune.resp_curr 8 / 32 ( 46 ): CD74, RARRES2, IFI27, COL1A1, THY1, S100A4, COL1A2, IFITM2

HNSCC.melanoma.stress_curr 5 / 46 ( 63 ): CKS2, IL32, CXCL1, ID1, FOSL1

g1.s_curr 1 / 11 ( 55 ): HMGB2

g2.m_curr 5 / 25 ( 69 ): CENPF, TOP2A, AURKA, CKS2, HMGB2

pd.DataFrame({k: ", ".join(v) for k, v in rhp_nmf.items()}, index=['Genes']).T.to_csv(
    "dump-data/Gene-sets/Pancancer-RHP-NMF.csv")
pd.DataFrame({k: ", ".join([str(i) for i in v]) for k, v in rhp_vivo.items()}, index=['Genes']).T.to_csv(
    "dump-data/Gene-sets/Pancancer-RHP-Vivo.csv")

dump_data = pd.DataFrame(index=adata.obs_names)

dump_data[['Cell_line']] = adata.obs[['Cell_line']]
dump_data[['Original_UMAP1', 'Original_UMAP2']] = adata.obsm['X_umap']

dump_features = list(set(['PRDX1', 'CDC20']))
dump_data[dump_features] = adata.raw.to_adata()[:, dump_features].X

dump_data

C:\Users\SLiang3\Miniconda3\envs\scanpy37\lib\site-packages\anndata\_core\anndata.py:1094: FutureWarning: is_categorical is deprecated and will be removed in a future version.  Use is_categorical_dtype instead
  if not is_categorical(df_full[k]):

	Cell_line	Original_UMAP1	Original_UMAP2	PRDX1	CDC20
AAACCTGAGACATAAC-1-18	NCIH2126_LUNG	-4.693660	-10.419457	3.149034	0.000000
AACGTTGTCACCCGAG-1-18	NCIH2126_LUNG	-4.332566	-10.322994	3.330684	1.079388
AACTGGTAGACACGAC-1-18	NCIH2126_LUNG	-4.886784	-10.156097	3.130302	1.681977
AACTGGTAGGGCTTGA-1-18	NCIH2126_LUNG	-4.574833	-9.963341	3.531188	1.848316
AACTGGTAGTACTTGC-1-18	NCIH2126_LUNG	-4.277936	-10.106932	1.808250	1.068981
...	...	...	...	...	...
c4722	JHU006_UPPER_AERODIGESTIVE_TRACT	6.447311	11.874496	2.580448	0.000000
c4724	JHU006_UPPER_AERODIGESTIVE_TRACT	6.758837	11.946816	2.867576	1.189283
c4731	JHU006_UPPER_AERODIGESTIVE_TRACT	6.952734	11.815464	2.529585	1.426004
c4735	JHU006_UPPER_AERODIGESTIVE_TRACT	7.577816	11.011492	2.643856	0.626556
c4741	JHU006_UPPER_AERODIGESTIVE_TRACT	7.468618	11.110316	3.266989	0.244731

53513 rows × 5 columns

dump_data.to_csv("dump-data/Fig-S3.csv")

weight_df = pd.DataFrame(model.w[model.w > 0.], index=adata.var_names[model.w > 0.])
weight_df.to_pickle("dump-data/pancancer-weights.pkl")
weight_df.to_csv("dump-data/pancancer-weigths.csv")
